Description

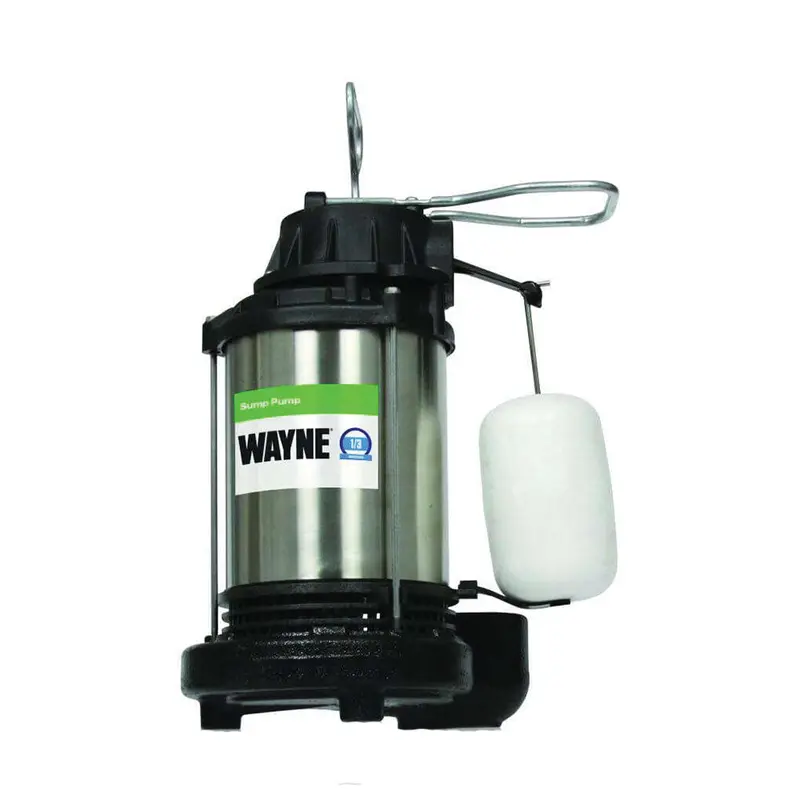

WAYNE® Submersible Sump Pump, 120 V, 15 A, 60 Hz, 1/3 hp, 4600 gph Flow Rate, 1 ph Phase, 1-1/2 in Discharge, 8 ft Cord Length, Thermoplastic Impeller, Iron/Stainless Steel, 10-1/2 in L x 9 in W x 11 in H
Features:
- Assembled in the US with foreign and domestic parts
- Tested to 1 million cycles, for performance that lasts, WAYNE® pumps exceeds an average life of 1 million cycles
- WAYNE® pumps energy efficient motors and engineered design provide the ultra-quiet experience you won’t believe
- Durable stainless steel and rugged cast iron construction, for long life in tough sump pump applications
- High performance flow rate is 4600 gph, 3060 gph at 10 ft of discharge lift
- Integrated vertical float switch with solid, leak-free polypropylene float for automatic operation, 9 in on level and 4 in off level
- No need for weep holes, unique top suction design reduces clogging and prevents air lock condition
- Engineered with upper and lower ball bearings, in sealed oil bath, for virtually silent operation
- Designed with premium John Crane carbon/ceramic shaft seals for quality that lasts
- Cast iron seal plate prevents leaks and galvanic corrosion
- 1-1/2 in NPT discharge for compliance with building codes
- Float guard, protects switch from hang-ups from debris and side of pit
- Abrasion-resistant glass reinforced polycarbonate impeller for reliability
- 8 ft water-resistant power cord provides easy access to nearby GFCI protected outlet
- For easy installation, use in 11 in Dia or larger sump basins
Other Attributes:
- SKU: 4003741
- Voltage Rating: 120
- Amperage Rating: 15
- Frequency Rating: 60
- HP Rating: 1/3
- Flow Rate: 4600
- Phase: 1
- Discharge Size: 1-1/2
- Cord Length: 8
- Impeller Material: Thermoplastic
- Material: Iron/Stainless Steel
- Dimensions: 10-1/2 in L x 9 in W x 11 in H
Documents:
Specification Sheet
Instruction/Installation Manual
